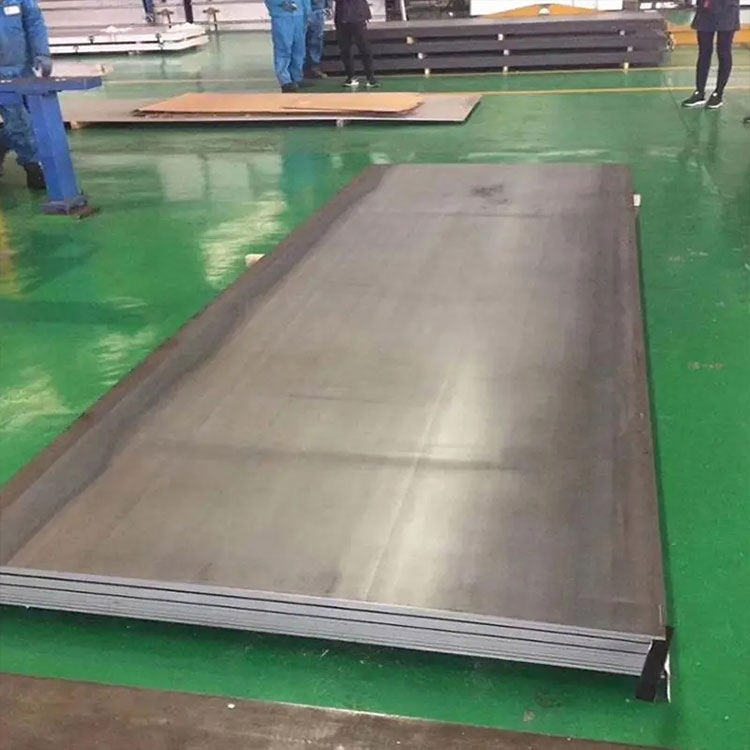

Bimetal composite wear-resisting steel plate is composed of low carbon steel plate and alloy wear-resisting layer.
The wear-resisting layer generally accounts for 1/3 to 1/2 of the total thickness.
Share To:
When working, the matrix provides the comprehensive properties of strength, toughness and plasticity to resist external forces, while the wear-resisting layer provides the wear-resisting properties to meet the requirements of specified working conditions.
The wear-resistant steel plate alloy wear-resistant layer and matrix is metallurgical bonding.By means of special equipment and automatic welding process, the high hardness self-protection alloy welding wire is uniformly welded on the substrate.In the process of composite, uniform transverse cracks appear due to the different shrinkage ratio of alloy, which is a significant characteristic of wear-resistant steel plate.
|
Productname: |
Wear resistant steel plate |
|
JIS |
NK-EH360,JFE-EH400,JFE-EH450,JFE-EH500 |
|
ASTM |
A516, A36,1020, 1045, 1060, 1036,1040,1043, A105, A106-B, A53-B, A106-A, A53-A |
|
GB |
NM360, NM400, NM450, NM500, NM550, NM600 |
|
Thickness: |
6.0-200mm，etc |
|
Width : |
1500-4100mm，etc |
|
Length : |
2000-12000mm，etc |
|
Standard : |
ASTM，AISI，JIS，GB， DIN，EN |
|
Certification : |
ISO, SGS，BV |
|
price terms : |
FOB,CRF,CIF,EXW all acceptable |
|
Delivery Detail : |
inventory About 5-7； custom-made 25-30 |
|
Loading port : |
any port in China |
|
Packing : |
standard export packing (inside:water proof paper,outside:steel covered with strips and pallets) |
|
Payment Terms : |
T/T, L/C at sight,West Union,D/P,D/A,Paypal |
